Climatronic Control Module A/C Control Head Electrical Test
>>

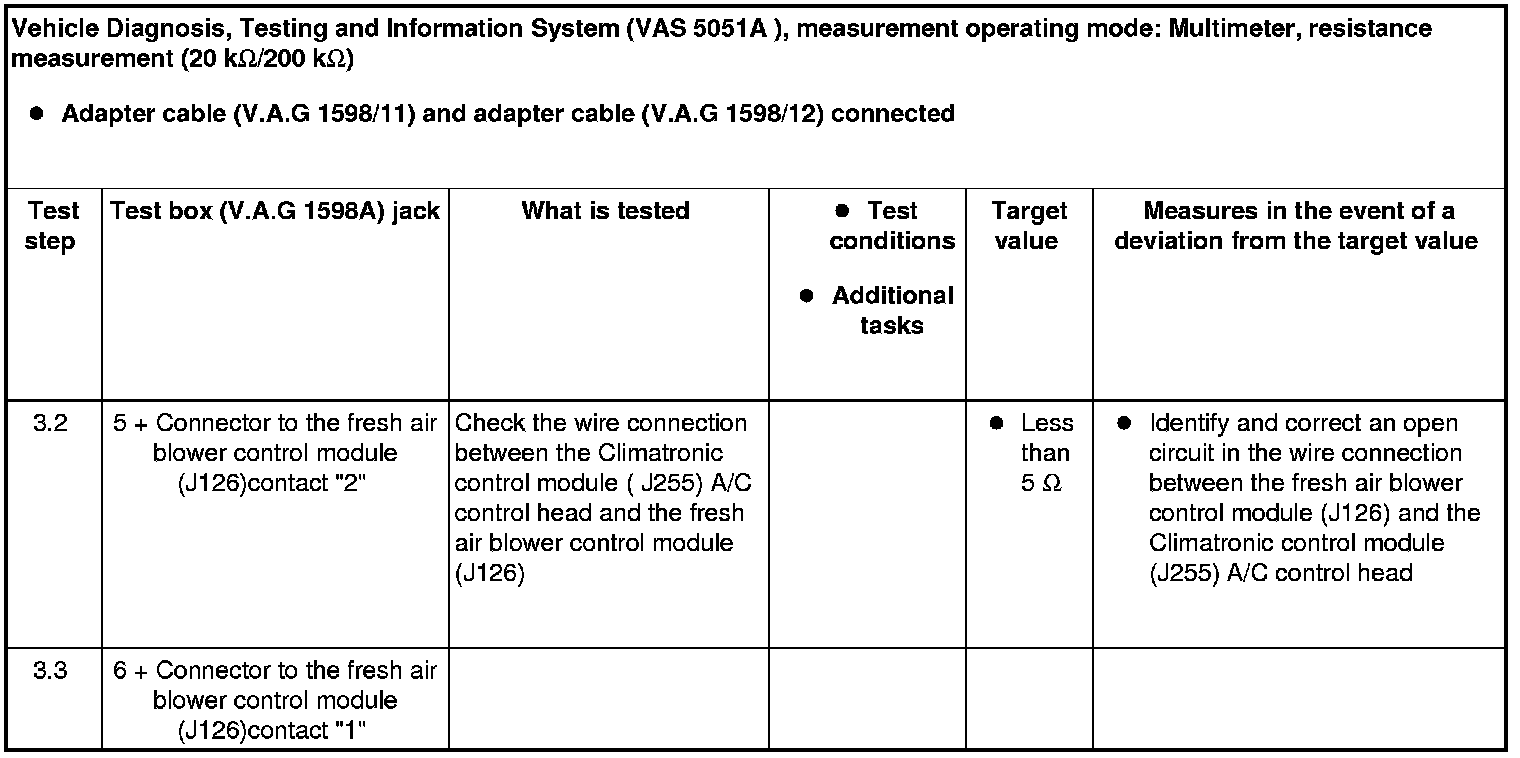

Wiring Connection to Fresh Air Blower Control Module

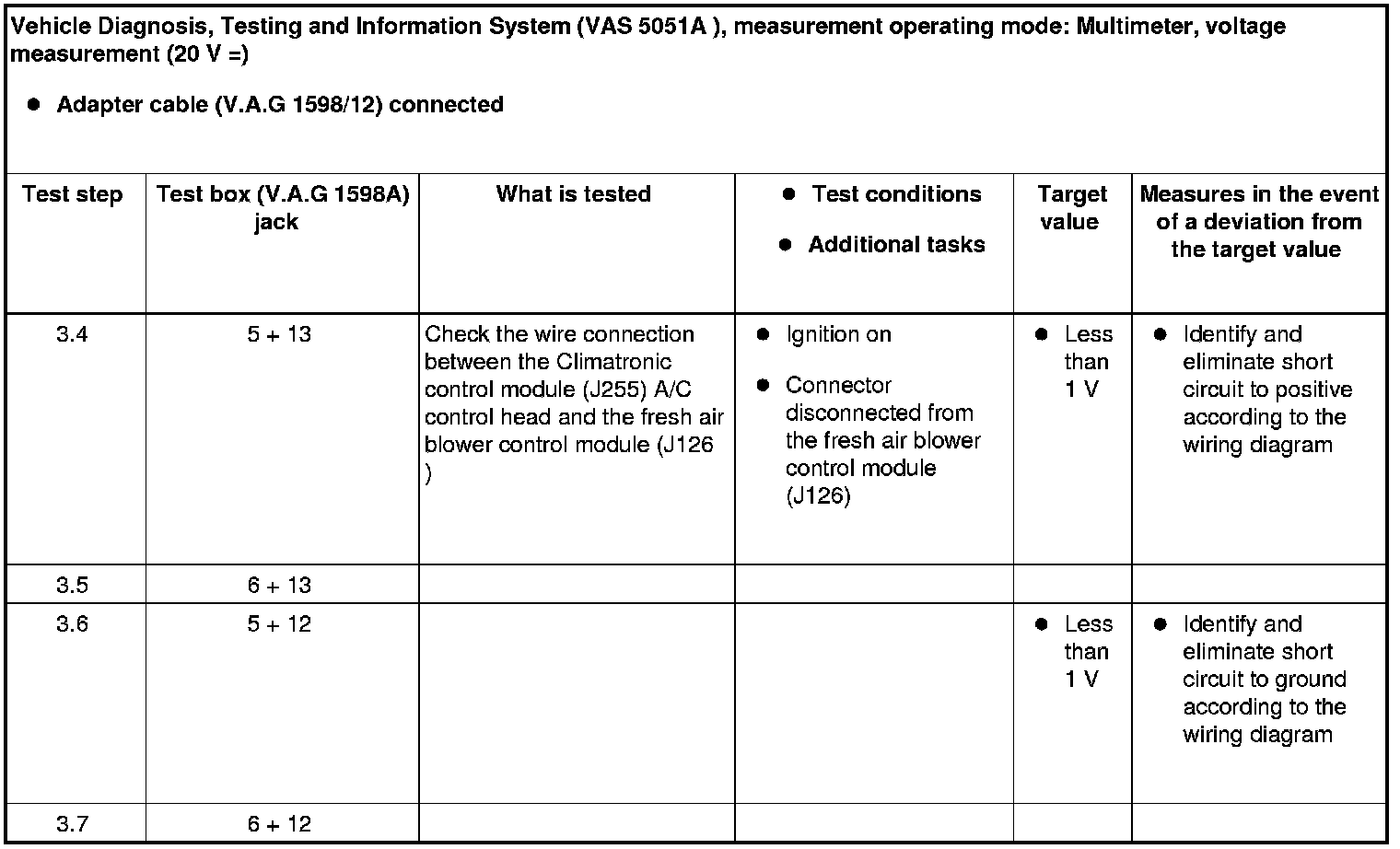

Wiring Connection to Fresh Air Blower Control Module
Wiring Connection to Fresh Air Blower Control Module
