AWD

Tail Pipe

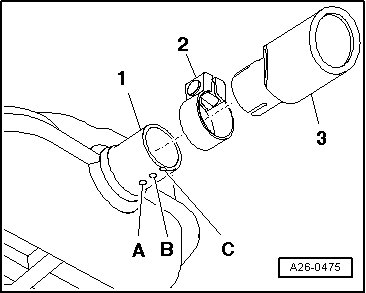

- Separate the old end pipe - 1 - at a right angel at the separating point - C - using a Chain Pipe Cutter (VAS 6254).





- Push the new end pipe - 3 - on up to marking - A - while aligning slit in end pipe with marking - B - on cover.

- Tighten the clamp - 2 - to 25 Nm.
