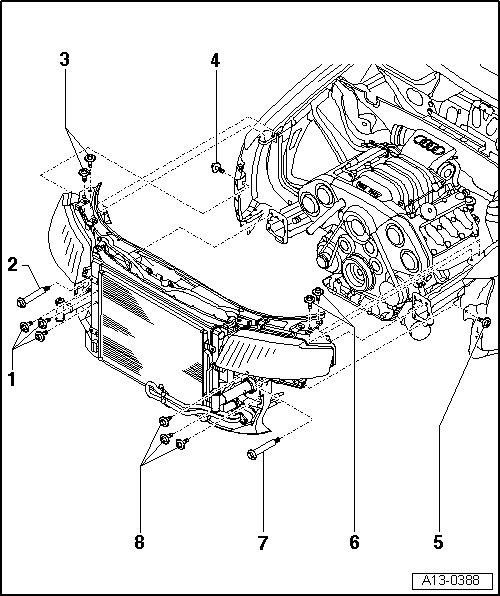

Lock Carrier Assembly Overview
Lock Carrier Assembly Overview
1 40 Nm
2 Special tool Support Tool (3369)
• Tighten to 10 Nm
3 10 Nm
4 10 Nm
5 10 Nm
6 10 Nm
7 Special tool Support Tool (3369)
• Tighten to 10 Nm
8 40 Nm
Lock Carrier Assembly Overview
1 40 Nm
2 Special tool Support Tool (3369)
• Tighten to 10 Nm
3 10 Nm
4 10 Nm
5 10 Nm
6 10 Nm
7 Special tool Support Tool (3369)
• Tighten to 10 Nm
8 40 Nm
