Cooling System Components, Overview

Cooling system components, overview

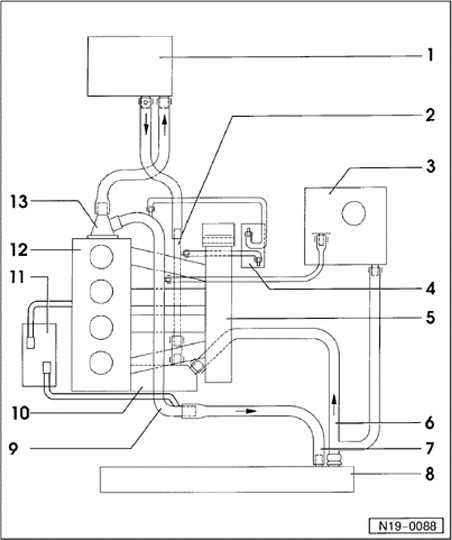

Coolant hose connection diagram

Coolant Hose Connection Diagram:

1 - Heat exchanger for heater
^ After replacing, fill with fresh coolant

2 - Coolant line (lower)

3 - Expansion tank
^ With cap
^ Checking pressure relief valve in cap

4 - Oil cooler

5 - Intake manifold

6 - Coolant hose (lower)

7 - Coolant hose (top)

8 - Radiator
^ After replacing, fill with fresh coolant

9 - Coolant line (top)

10 - Coolant pump / thermostat
^ Check for ease of movement

11 - Turbocharger

12 - Cylinder head / cylinder block
^ After replacing, fill with fresh coolant

13 - Connection
