Rear Footwell Lighting






Rear Footwell Lighting

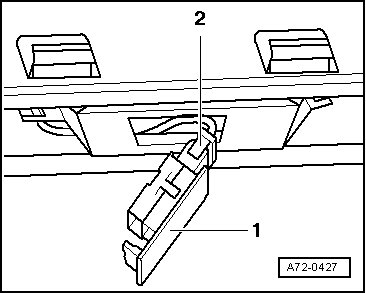

- Press out rear footwell light - 1 - from rear.





- Remove connector - 2 -.
