Front Seat With Faulty Forward and Backward Seat Adjustment Motor or Defective Control Unit, Removing and Installing

Front Seat With Faulty Forward And Backward Seat Adjustment Motor Or Defective Control Unit, Removing And Installing

NOTE:
- If possible: Move seat up.

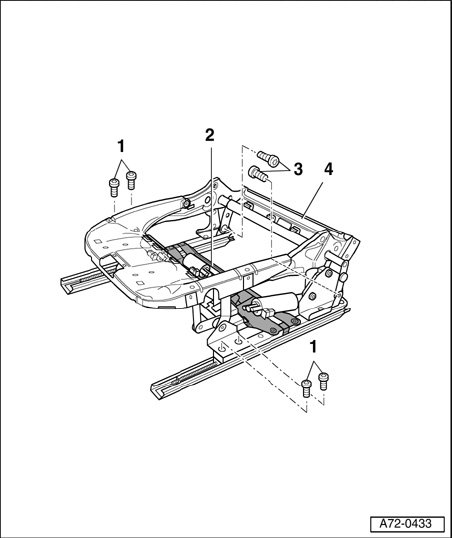

- For greater clarity, the illustration shows the seat pan without padding or backrest.







1 - Bolts (4x)
- Tightening torque 17 Nm
2 - Motor retaining plate
3 - Bolts (2x)
- Tightening torque 19 Nm
4 - Upper seat pan support
- Removing
- Remove bolts - 3 - (2x).
- Fold seat forwards.
- Remove bolts - 1 - (4x).
- Remove backrest with top support of seat pan.

- For faulty control unit:
- Disconnect connector at forward and backward seat adjustment motor.
- Move the forward and backward seat adjustment motor with an external power source until the bolts are visible.
- Remove bolts.
- Remove control unit.

- For faulty forward and backward seat adjustment motor:
- Disconnect connector - 3 -.
- Remove bolts - 4 - (2x) from forward and backward seat adjustment motor.
- Disengage forward and backward seat adjustment motor - 2 - from the two shafts - 1 - and - 5 -.
- Move both seat rails using a power screwdriver via the long shaft - 5 -, until the concealed bolts are visible.
- Remove bolts.
- Replace the lower seat support with forward and backward seat adjustment motor.
