Side Trim, Removing and Installing

Side Trim, Removing And Installing

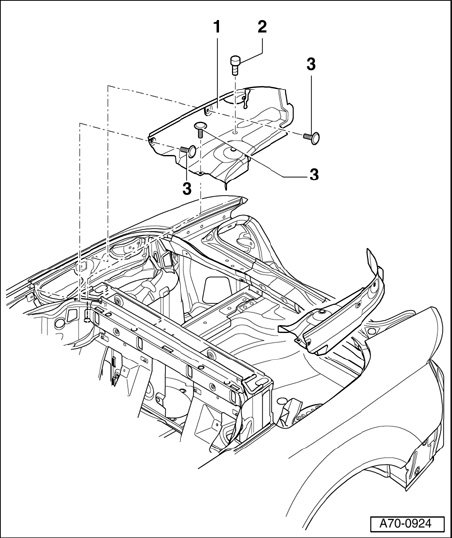

1 - Side trim
- Removing
- Open convertible top.
- Fold convertible top compartment down.
- Unclip clips - 3 - (3x).
- Remove stop buffer - 2 -.
- Fold seal aside and pull out side trim - 1 -.
- Installing

NOTE: After installation ensure that seal is pulled correctly over trim.

- Install side trim - 1 - in reverse order of removal.
2 - Stop buffer
3 - Clips (3x)
