Rack of Variable Convertible Top Compartment, Removing and Installing

Rack Of Variable Convertible Top Compartment, Removing And Installing

- Remove variable convertible top compartment.







- Pull carpet - 1 - back (convertible top compartment lining) on side to be changed until both bolts - 2 - are accessible.
- Bond carpet with D 001 200.
- Remove bolts - 2 - (2x).
- Tightening torque 4 Nm
- Detach convertible top compartment center section from side section - 4 - on right.







- Pull apart side sections - 1 - and - 2 -.

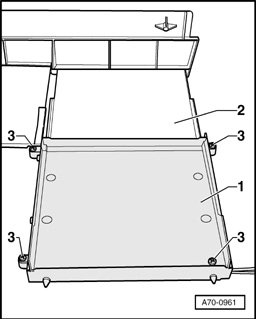

- Remove bolts - 3 - (4x) from inner lid.
- Tightening torque 2 Nm
- Detach inner lid - 1 -.







- Remove bolts - 1 - (4x) on both sides.
- Tightening torque 2 Nm

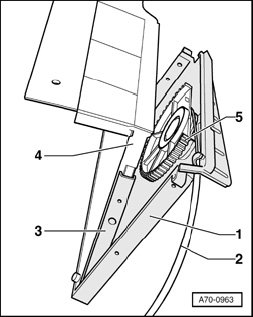

- Pull sections - 1 - and - 4 - apart upward.
- Pry guide rails - 3 - out of catch of section - 1 -.
- Separate sections - 1 - and - 4 -.







- Remove bolts - 2 - (3x)
- Tightening torque 25 Nm
- Remove rack - 1 -.
