Convertible Top Compartment Lid, Assembly Overview

Convertible Top Compartment Lid, Assembly Overview

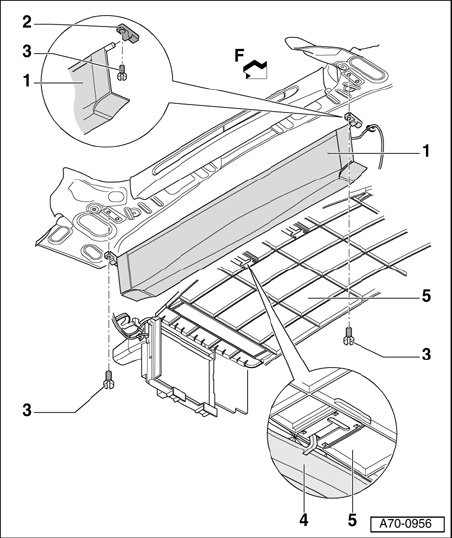

1 - Convertible top compartment lid

NOTE:
- The variable convertible top compartment must be in the lowest position.
- The hinges - 2 - must not be unscrewed to remove convertible top compartment lid - 1 -.
- Arrow faces in direction of travel.

- Removing
- Bend convertible top compartment lid - 1 - back on one side on hinge and detach convertible top compartment lid - 1 - from hinges.
- Fold convertible top compartment lid - 1 - downward.
- Detach lid on hooks - 4 - (2x) by pushing forward.
2 - Hinge (2x)
- Bend convertible top compartment lid - 1 - back on one side on hinge and detach convertible top compartment lid - 1 - from hinges.
- Remove bolt - 3 -.
- Detach hinge - 2 - from body.
3 - Bolt (2x)
4 - Hook
5 - Variable convertible top compartment
