Convertible Top Compartment Cover Latch - Assembly Overview

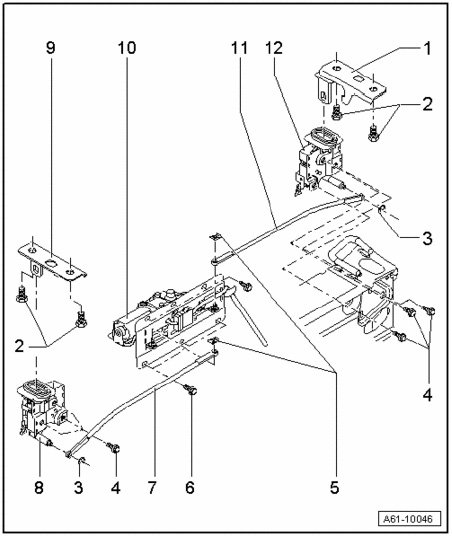

Convertible top compartment cover latch-assembly overview

NOTE: When working on the convertible top electrical system, disconnect vehicle battery ground strap.







1 - Right tension plate
2 - Screw
- 21 Nm
3 - Locking washer
4 - Screw
- 21 Nm
5 - Securing clips
6 - Lock bolt (motor/switch)
- 10 Nm
7 - Left push rod
- Preset.
8 - Left convertible top compartment cover lock
- The Left Convertible Top Compartment Cover Switch F290 is secured on the lock.
9 - Left tension plate
10 - Convertible Top Compartment Cover Locking Motor V222 (Convertible Top Compartment Latch Switch (unlock) F293)
- Removing.
- Adjusting.
11 - Right push rod
- Preset
12 - Right convertible top compartment cover lock
- The Compartment Cover Locked Right Switch 1 F200 is secured on the lock.
- Removing.
