Lock Carrier In Service Position, Overview

Lock carrier in service position, overview

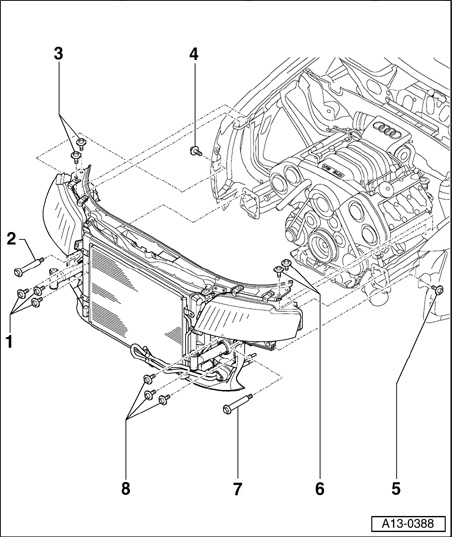

Lock Carrier In Service Position, Overview:

1 - 45 Nm

2 - 45 Nm

3 - 10 Nm

4 - 10 Nm

5 - Hole
^ For special tool 3369

6 - Hole in lock carrier

7 - Hole in fender

Removing

Vehicles with auxiliary heater





- Remove bolts - arrows - securing exhaust pipe of auxiliary/additional heater to sound insulation.

All models





- Remove sound insulation - arrows -.





- Remove bolts - arrows -.
- Disengage EVAP canister purge regulator valve N80 - 1 - from air duct.
- Remove air duct - 2 -.
- Pull off hood seals at lock carrier and fender edges.
- Remove front bumper.





- Remove bolts on left and right - arrows -.





- Screw special tool 3369 into free holes on left and right.
- Remove bolts on left and right - arrows -.
- Carefully pull lock carrier forward.

Installing
Install in reverse order, paying attention to the following:

- Bolt lock carrier to longitudinal member (50 Nm) and to fenders (10 Nm).





- Allow stop for torque reaction support to rest on rubber buffer for torque reaction support under its own weight, and tighten bolts - arrows - to 28 Nm.
- Install front bumper.
- Adjust headlights.

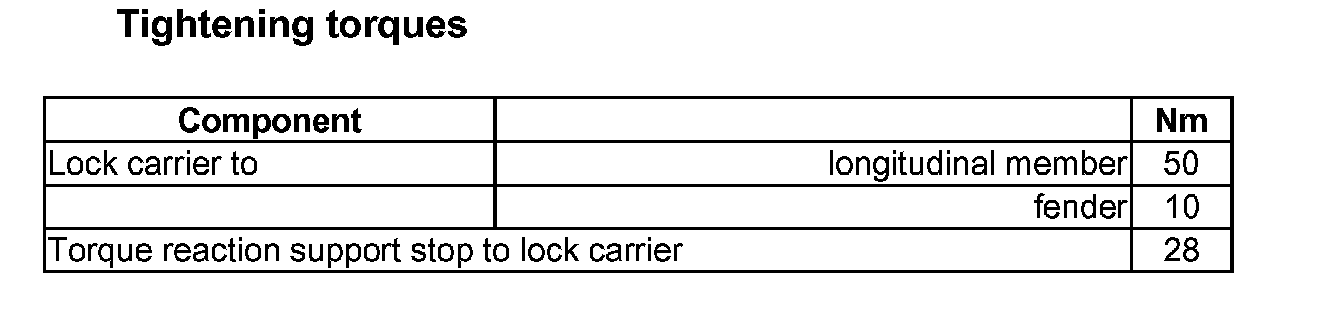

Tightening Torques:
