Rear Bulkhead Trim

Rear Bulkhead Trim





1 - Rear Bulkhead Trim

• Removing

- Remove the right side trim. Refer to => [ Right Side Trim ] Right Side Trim.

- Remove the left side trim. Refer to => [ Left Side Trim ] Left Side Trim.

- Remove the luggage compartment floor covering

- Remove the pass-through frame, if equipped. Refer to => [ Ski Sack Trim ] Rear Seat Covers and Cushion.

- Make sure the convertible top is closed and the convertible top compartment is folded up.

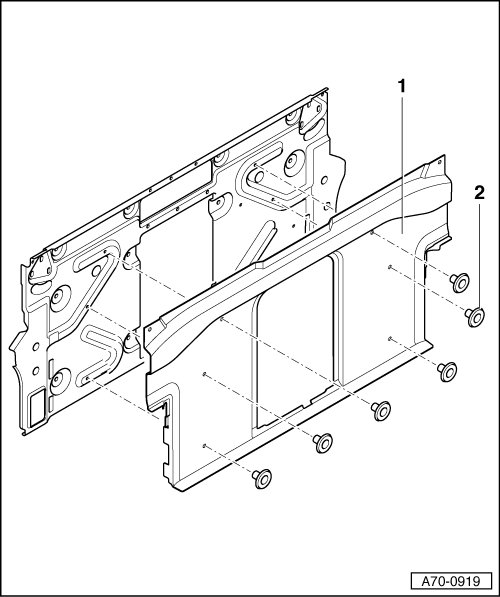

- Unclip the rear panel trim - 1 - at the clips - 2 - (1Qty. 2).

2 - Clips (Qty. 6)





1 - Clips (Qty. 2)

2 - Rear Bulkhead Trim

• Fold the convertible top compartment down.

• Open convertible top.

• Unclip the rear panel trim - 2 - at the clips - 1 - (1Qty. 2).

• Remove the rear panel trim - 2 -.

• Removing

- Install the rear panel trim - 2 - in reverse order of removal.
