Left Side Trim

Left Side Trim

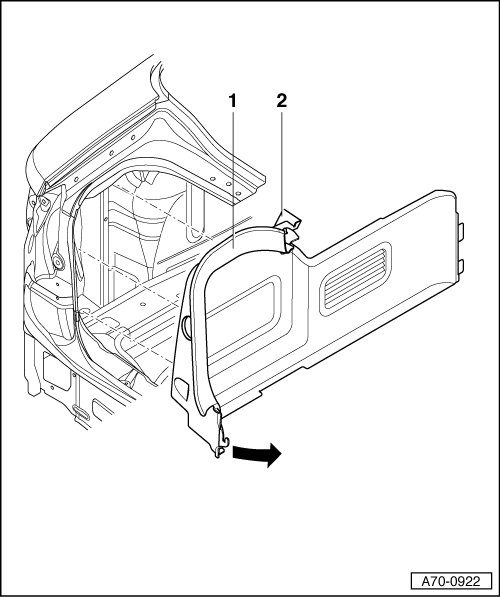

1 - Left Side Trim

• Removing

- Remove the luggage compartment floor covering

- Remove rear cross panel trim. Refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim.

- Remove the handle trim. Refer to => [ Handle Mount Trim ] Variable Convertible Top Compartment.

- Remove the convertible top compartment cover. Refer to => [ Convertible Top Compartment Cover ] Variable Convertible Top Compartment.

- Unclip the clip - 2 -.

- Remove the left side trim - 1 - in direction of arrow.

• Installing

• After installing, make sure the seal is correctly pulled over the trim.

•

- Install the trim in reverse order of removal.

2 - Clip
