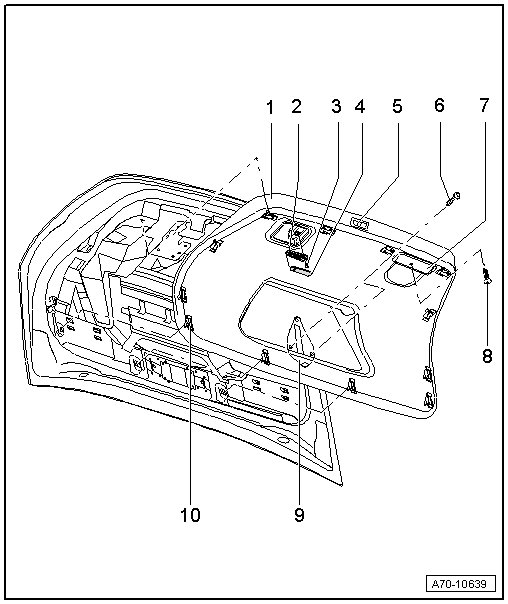

Luggage Compartment Trim Assembly Overview

Luggage Compartment Trim Assembly Overview





1 Rear Lid Trim

• Removing, Refer to => [ Rear Lid Trim ] Luggage Compartment Trim.

2 Handle

• Different versions depending on country

• Removing, refer to => [ Emergency Unlock Handle ] Luggage Compartment Trim.

3 Bolt

• Different versions depending on country

• 4.5 Nm

4 Cover

• Different versions depending on country

5 Lock Cover

6 Bolt

• Qty. 2

• 6 Nm

7 Handle

8 Bolt

• 2.5 Nm

9 Warning Triangle Bracket

10 Clip

• Qty. 12
