Rear Center Armrest and Ashtray, Assembly Overview

Rear Center Armrest And Ashtray, Assembly Overview

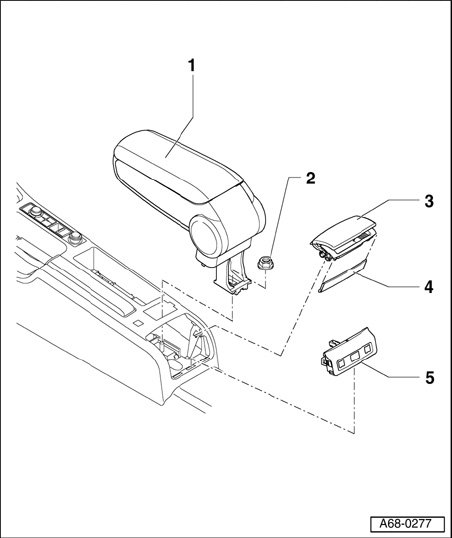

1 - Center armrest
- Removing
- Remove rear ashtray - 3 -.
- Remove nut - 2 - in ashtray well.
- On center armrest with telephone, disconnect telephone connector.
- Remove center armrest - 1 -.
2 - Nut
- Tightening torque 26 Nm
3 - Rear ashtray
- Removing
- Unclip lid - 4 -.
- Detach ashtray at rear - 3 -.
- If installed, unclip mount for seat heating switch - 5 -.
4 - Cover
5 - Mount for switch
- Removing and installing







Removing and installing mount for switch

- Removing
- Remove rear ashtray.

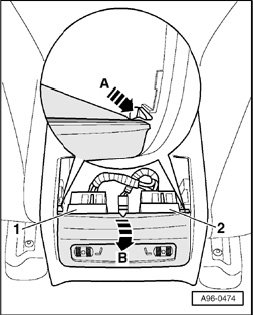

- Press left and right engaging hooks - arrow A - outward and fold back switch mount - arrow B -.
- Disengage lower switch mount on rear of center console.
- Disconnect connectors.
- Unclip switches - 1 - and - 2 -.
- Installing
- Installation is in reverse order of removal.
