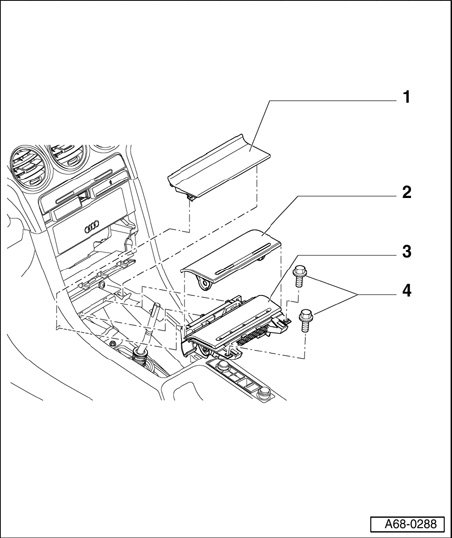

Front Ashtray, Assembly Overview

Front Ashtray, Assembly Overview







1 - Tray trim
- Only on instrument panel center section for "Chorus" and "Concert" radios
2 - Ashtray trim
3 - Front ashtray
- Removing
- Manual transmission: Pry gear cover upward and remove.
- Automatic transmission: Pry gear cover off upward.
- For vehicles with air conditioner and "Symphony" radio / on-screen navigation system: Remove A/C Control Head E87 for air conditioner.
- Remove two bolts - 4 - from ashtray.
- Unclip tray trim - 1 -.
- Remove ashtray - 3 -.
- Disengage trim - 2 - from ashtray - 3 -.
4 - Bolts (2x)
- Tightening torque 3.5 Nm
