Shift Mechanism, Installation Position

Shift mechanism, installation position, 02M/02Y, 5 & 6 Speed M/T, AWD

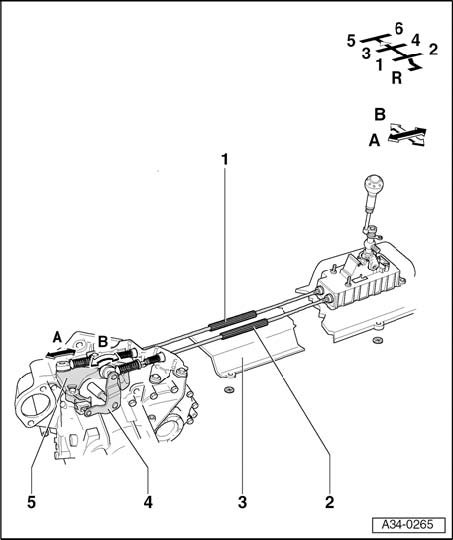

- Arrow A - shift movement
- Arrow B - selector movement





1 - Shift cable
^ For shift movement - arrow A -
2 - Selector cable
^ For selector movement - arrow B -
3 - Heat shield
4 - Linkage lever
5 - Shift rod lever with balance weight

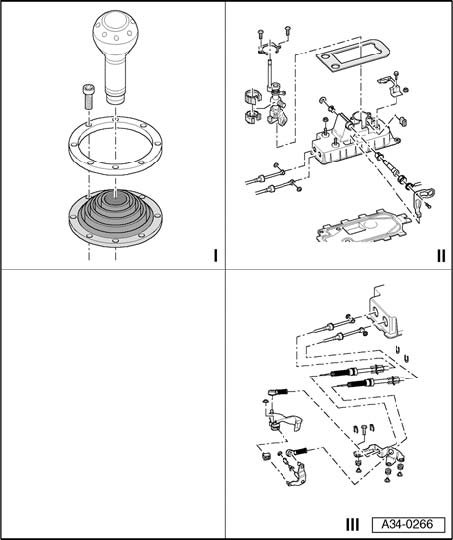

I - Shift knob and cover, assembly overview

II - Shift lever and shift mechanism, assembly overview

III - Shift mechanism cables and
