Adjustment Overview

Adjustment overview, 02M/02Y, 5 & 6 Speed M/T, AWD

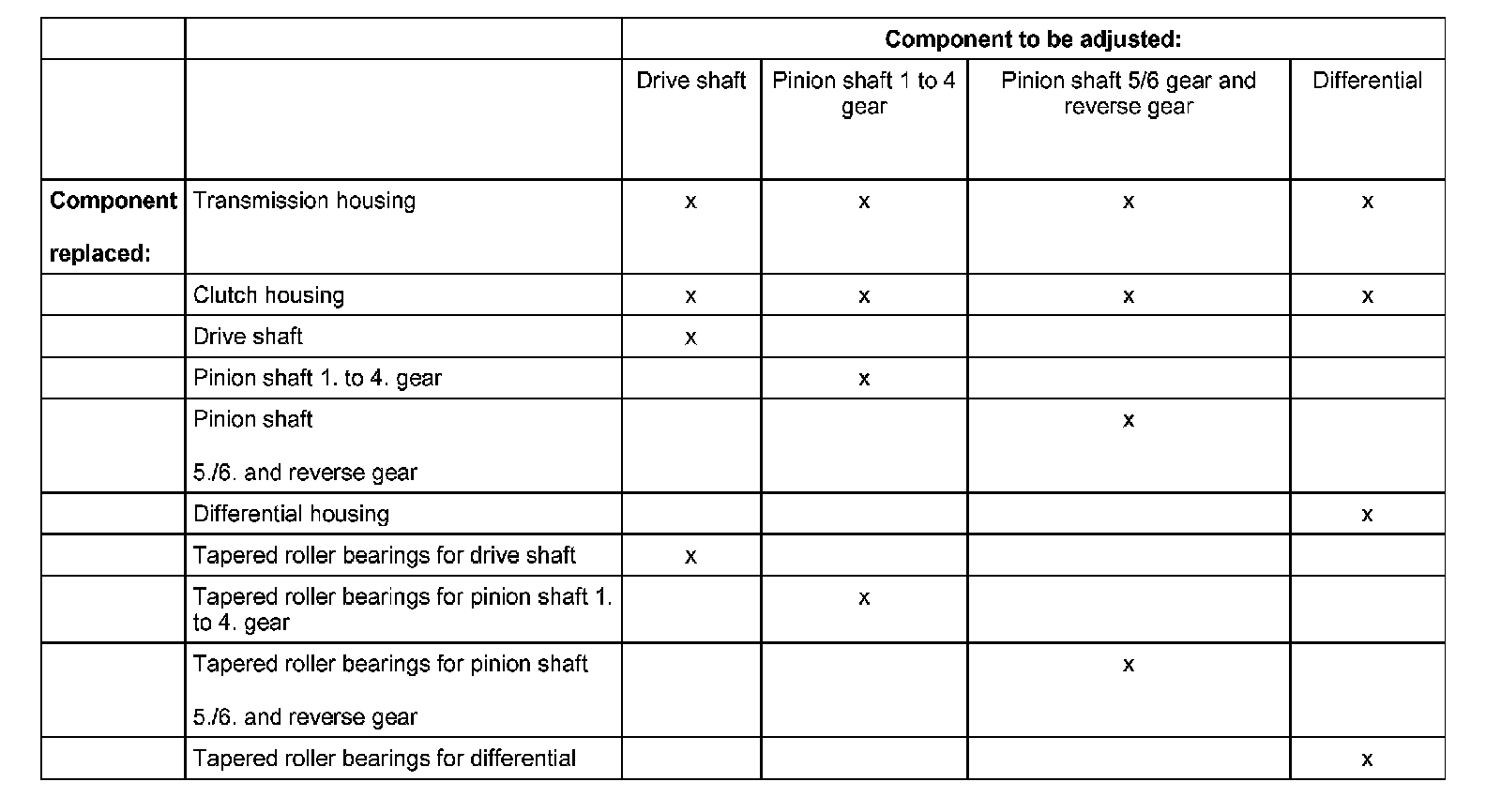

Note: If repairs have been carried out on the transmission, it is only necessary to adjust the drive shaft, pinion shaft 1. to 4. gear, pinion shaft 5/6 and reverse gear or differential gear if components have been replaced that directly influence the final drive adjustment. To avoid unnecessary adjustments, refer to the following table:
