Adjustment Overview

Adjustment overview, 02M/02Y, 5 & 6 Speed M/T, AWD

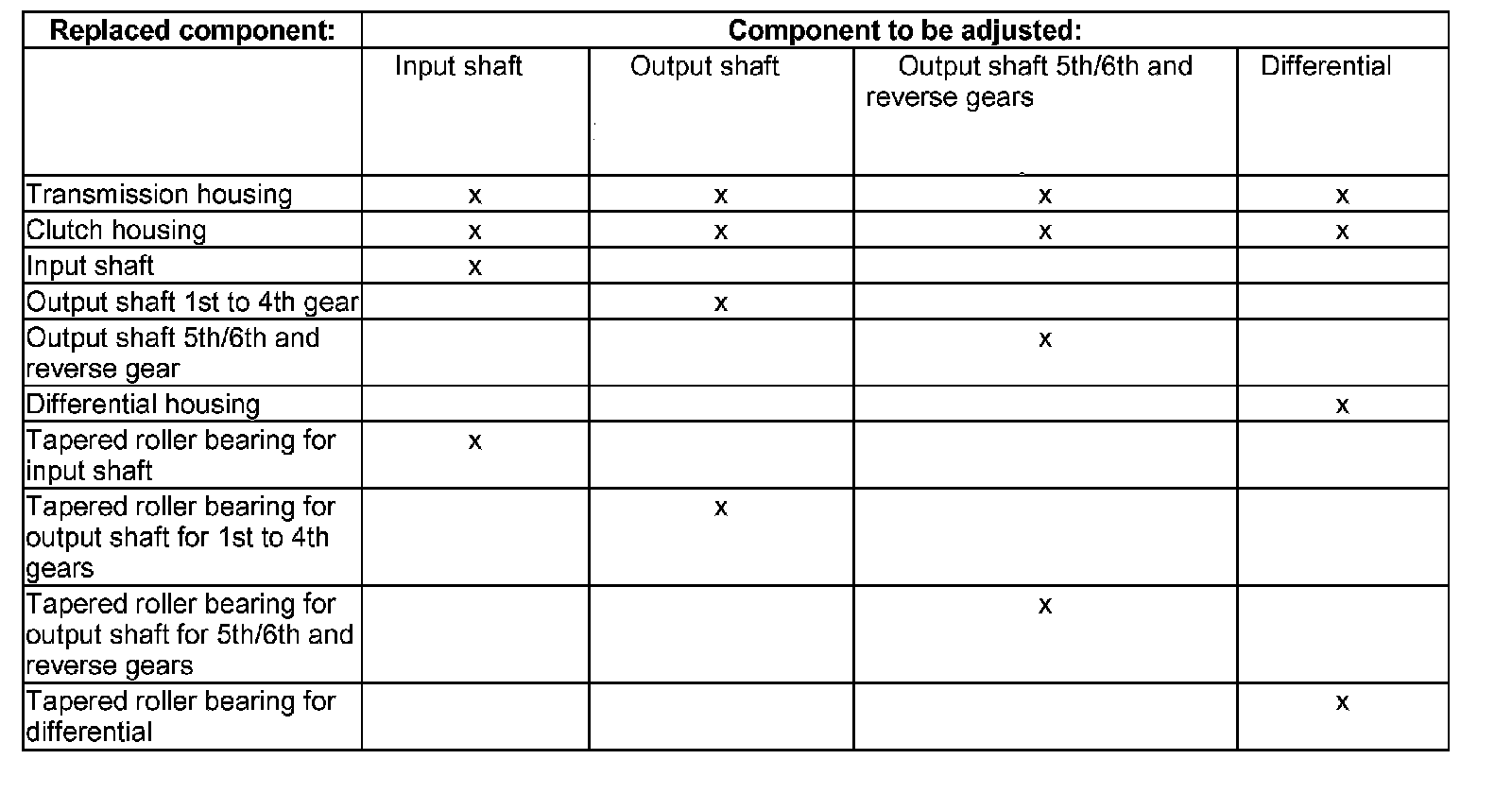

When performing disassembly and assembly work on the transmission, a new adjustment of the input shaft, output shaft for 1st to 4th gears, output shaft for 5th/6th and reverse gears or differential is required only when components which have a direct influence on the transmission adjustment have been replaced. Note the follow table to prevent unnecessary adjustments:
