Transmission Layout

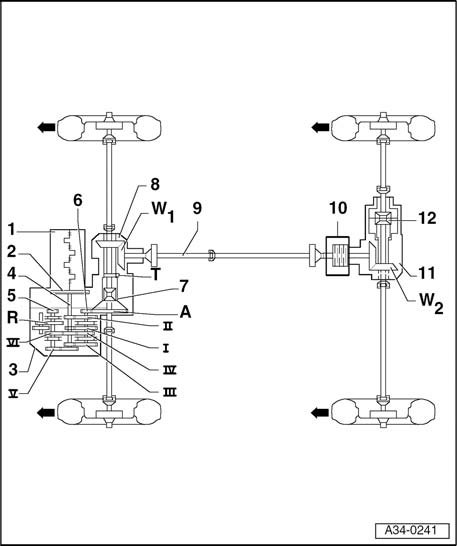

Transmission layout, 02M/02Y, 5 & 6 Speed M/T, AWD

Note: Arrows point in direction of travel





1 - Engine

2 - Clutch

3 - Transmission

4 - Input shaft

5 - Output shaft 5th/6th and reverse gear (pinion shaft II)

6 - Output shaft 1st to 4th gear (pinion shaft I)

7 - Differential

8 - Bevel gear transfer case

9 - Driveshaft

10 - Haldex coupling

11 - Rear final drive

12 - Differential

I - 1st Gear

II - 2nd Gear Ill - 3rd Gear

IV - 4th Gear

V - 5th Gear

VI - 6th Gear

R - Reverse Gear

A - Final drive

T - Speedometer drive

W1 - Front bevel drive

W2 - Rear bevel drive
