TT Quattro Coupe (8N3) L4-1.8L Turbo (BEA)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Description and Operation
>>
Calculation of Transmission Ratios "i"
Calculation of Transmission Ratios "i"
Calculation of transmission ratios "i", 02M/02Y, 5 & 6 Speed M/T, AWD

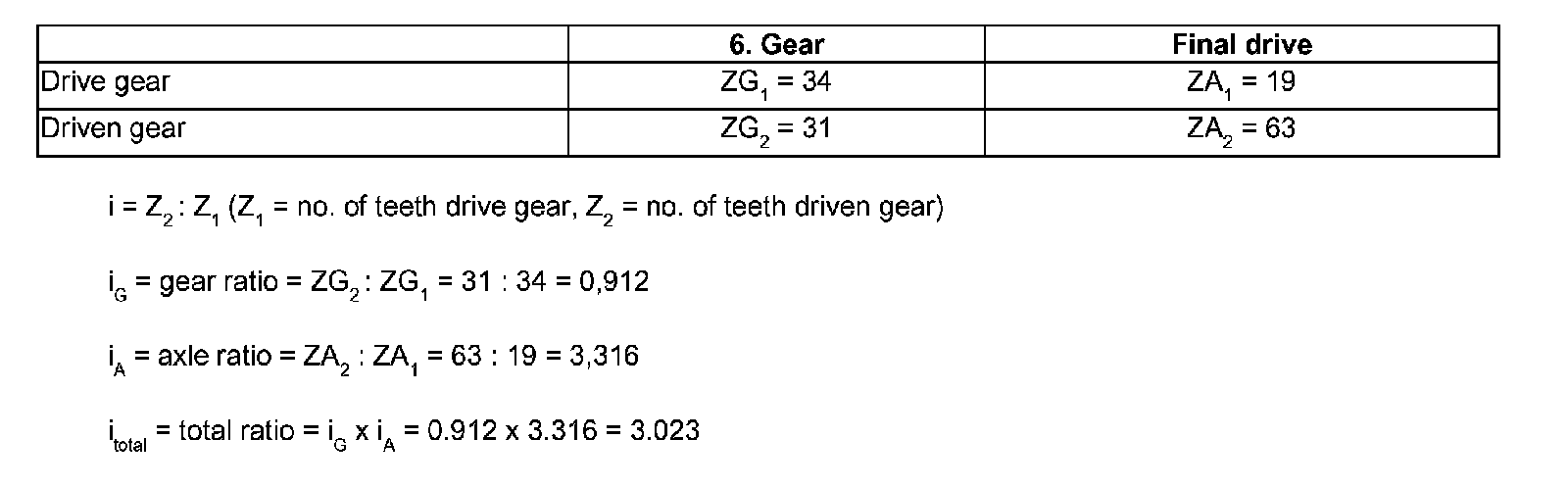

Example:
