Dual Mass Flywheel, Removing and Installing

Dual mass flywheel, removing and installing

Removing

- Mark installing position of dual mass flywheel on crankshaft with a permanent felt-marker.





- Insert counter-hold tool 3067 in drilling in cylinder block, and engage on flywheel.

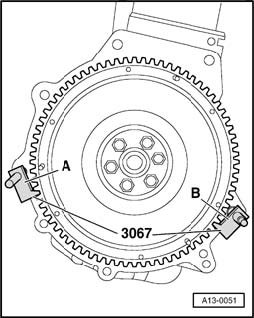

^ Insertion position for counter-hold tool:

A - To tighten
B - To loosen

- Loosen flywheel bolts.

Installing

- Install dual mass flywheel to crankshaft in the position marked when removing it.
- Install new bolts and tighten.

Tightening torque
