Rear Final Drive Identification

Rear final drive identification
The rear final drive 02D is allocated to the 6-speed Manual Transmission 02M/02Y all wheel drive and Direct Shift Automatic (DSG) transmission 02E all wheel drive.





Identification allocation on rear final drive
The identification is located either in the area of the oil filler plug - arrow -.





or in the area of the Haldex clutch electrical connector - arrow -.

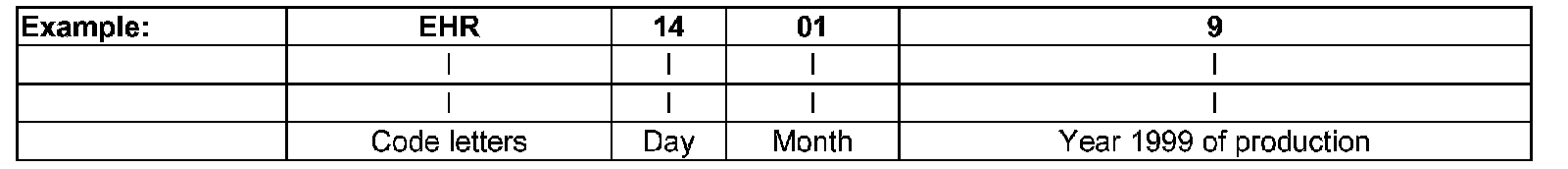

Code letters and build date on rear final drive





Additional data depends on manufacture.
