Rear Suspension

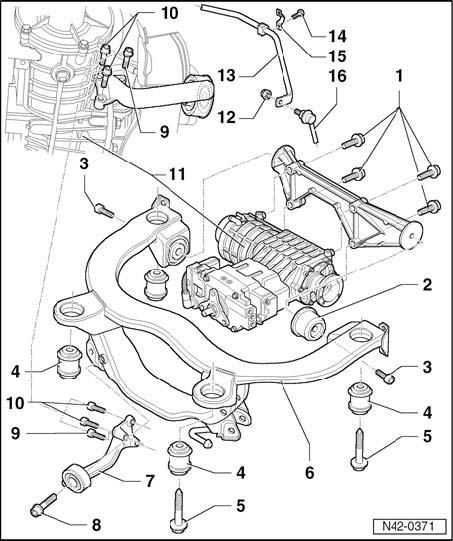

Subframe with rear final drive, assembly overview





1 - Socket head bolt, 60 Nm

2 - Bonded rubber bushing for rear final drive

3 - Socket head bolt, 60 Nm

4 - Bonded rubber bushing for subframe
^ Replacement parts are supplied in a sealed plastic bag
^ Do not use bonded rubber bushings which have been stored unsealed.

5 - Hex bolt M 12 x 1.5 x 85
^ 110 Nm plus an additional 90° 1/4 turn
^ Always replace if removed

6 - Subframe

7 - Support for rear final drive

8 - Socket head bolt, 60 Nm

9 - Hex socket head bolt, 40 Nm + 45°
^ M10 x 55

10 - Hex socket head bolt, 40 Nm plus an additional 45/turn° 1/8
^ M10 x 40

11 - Rear final drive

12 - Self-locking nut, 25 Nm
^ Always replace if removed

13 - Stabilizer bar

14 - Hex bolt, 20 Nm

15 - Clamp

16 - Coupling rod
