Windshield Washer Reservoir: Service and Repair

Washer Fluid Reservoir, Removing And Installing

NOTE: The washer fluid reservoir supplies washer fluid to both the windshield washers and headlight washer system where equipped.

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.







- Washer fluid reservoir -1- is located at rear of left wheel housing and secured to fender and A-pillar.

Removing
- Lift cap for washer fluid reservoir and remove circlip from filler connection.
- Remove front left wheel and wheel housing liner.







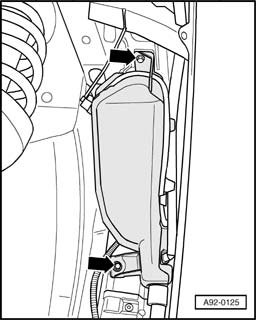

- Remove screws -arrows-.
- Lower reservoir slightly in fender opening.

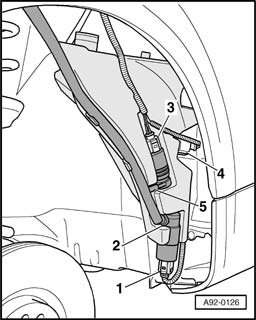

- Disconnect electrical connections -1-, -3- and -4-
- Depress retainer and remove washer hose coupling -2- from pump.
- Remove washer hose -5- from pump.
- Remove washer fluid hoses from retainers (clips).

Installing
Install in reverse order of removal, noting the following:

NOTE: Ensure washer hose couplings engage audibly when reinstalling.

Tightening torque

Washer fluid reservoir to body 7 Nm
