Rear Window, Assembly Overview

Rear Window, Assembly Overview

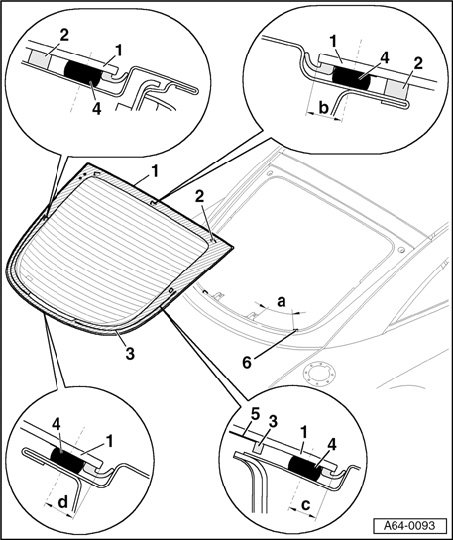

1 - Rear window
- When installing, center window all around in opening
2 - Upper spacers
- Glue 5 spacers at equal intervals on top and side edges of rear window.
- Distances from edge of window
3 - Stopper profile for adhesive
- Glue onto window next to conductor strip







4 - Adhesive bead
- Dimension - b - = 12 mm ± 2 mm
- Dimension - c - = 12 mm ± 2 mm
- Dimension - d - = 12 mm ± 2 mm

Adhesive bead cross-section:
- Adhesive bead width = 8 mm ± 2 mm
- Adhesive bead height = 12 mm ± 3 mm

5 - Conductor strip for heating element
- Primer must not come into contact with conductor strip
6 - Lower spacers
- Glue on at a distance - a - = 230 mm from bracket for third brake light and flush with inside edge of window flange
