Overhaul

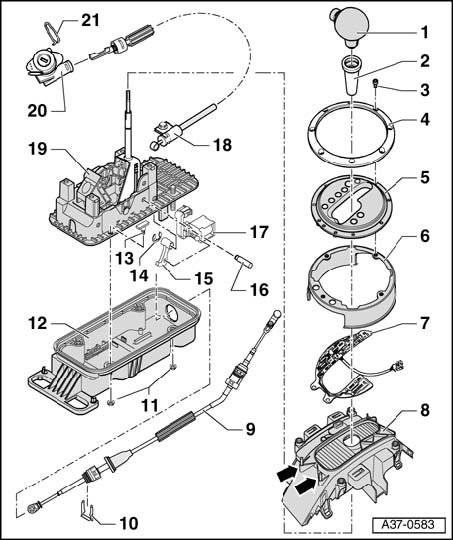

Shift mechanism, disassembling and assembling, 09G, 6 Speed A/T





Note: Lubricate mountings and sliding surfaces with polycarbamide grease, Part number G 052 142 A2.

1 - Handle for selector lever

2 - Sleeve
^ Engages in selector lever handle
^ Disables removal of selector lever handle

3 - Bolt, 4 Nm
^ Qty. 8

4 - Retaining ring

5 - Upper cover
^ With symbol insert

6 - Side cover

7 - Circuit board
^ With integrated Tiptronic switch - F189-
^ Can be checked using VAS 5051 in Guided fault-finding
^ Can only be replaced after removal of rear center console

8 - Frame
^ With screen
^ Can only be replaced after removal of rear center console

9 - Selector lever cable
^ Do not bend or kink
^ If protective sleeve is damaged, selector lever cable must be replaced
^ Do not lubricate cable eye and ball socket

10 - Locking plate
^ For selector lever cable at bearing cup
^ Always replace

11 - Self-locking nut, 10 Nm
^ For cover at mounting bracket
^ Qty. 4
^ Always replace

12 - Cover
^ For mounting bracket
^ With bonded-on gasket

13 - Bolt

14 - Locking plate
^ For pivot pin Item - 16 - of locking pawl Item - 15 -

15 - Locking pawl
^ For selector lever lock
^ Engages in cable lever of mounting bracket

16 - Pivot pin
^ For locking pawl

17 - Shift lock solenoid - N110 -
^ Can be replaced with shift mechanism installed
^ Can be checked using VAS 5051 in Guided fault-finding

18 - Locking cable
^ For ignition key removal lock
^ Must not be kinked

19 - Mount

20 - Steering lock

21 - Clamp
^ Installation position: Install clamp from above. Angled ends of clamp point toward steering lock





Fig. 1 Installation position of printed circuit board
- Position printed circuit board with its holes on guides of frame (arrows).
- Clip wiring harness -A- into frame ensuring that printed circuit board does not become deformed.





Fig. 2 Removing screen
- Carefully pry out retaining tabs (arrows) of lower part on upper part of frame in succession. If retaining tabs are damaged, lower section of frame must be replaced.
- Remove screen.

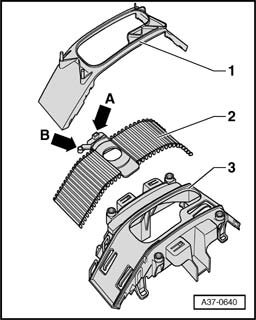

Fig. 3 Installing screen
- Place screen - 2 - in lower section of frame - 3 -.

Solenoids (arrow -A-) and (arrow -B-) must be securely fixed on screen. If necessary replace screen.

Note: If the solenoid (arrow - A) is missing (or has fallen out) then the Tiptronic switch will not work.

- Carefully clip upper part of frame - 1 - into lower part of frame - 3 -.
