Sensor For Transmission Input RPM - G182 -, Removing and Installing

Sensor for transmission input RPM - G182 -, removing and installing, 09G, 6 Speed A/T

Note:
^ Be familiar with the rules for cleanliness when working on the automatic transmission.
^ General repair instructions.

Removing
- Disconnect battery.
- Remove oil pan.
- Remove ATF screen.
- Remove valve body.

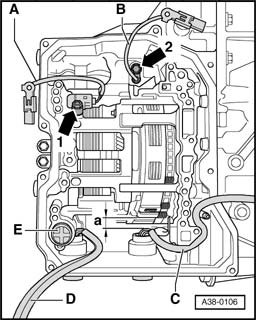

- Remove bolt - 1-.
- Remove sensor - G182 - with wire -A- from transmission.

Installing
Installation is performed in the reverse order; note the following:
- Press sensor - G182 - carefully up to limit stop in transmission.
- Tighten M6 bolt to 5.5 Nm.
