Front Suspension

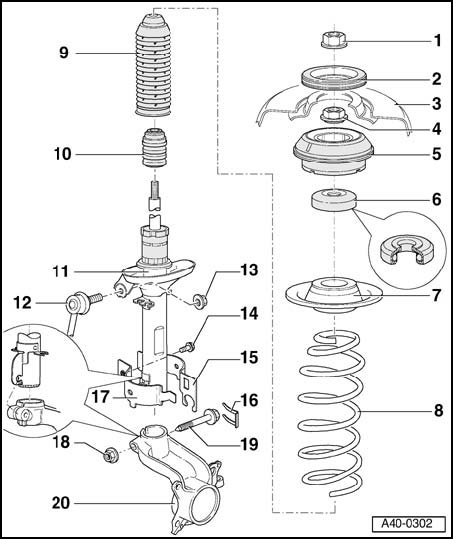

Suspension strut, assembly overview





1 - Self-locking hex nut, 60 Nm

2 - Stop shell

3 - Body (suspension strut dome)

4 - Hex nut, 60 Nm
^ Always replace

5 - Suspension strut bearing
^ Coat with assembly lubricant G 294 421 A1.

6 - Deep-groove thrust ball bearing

7 - Spring plate

8 - Coil spring
^ Note color code
^ Surface of spring coil must not be damaged
^ Note different spring/shock absorber versions; refer to vehicle data sticker

9 - Protective sleeve

10 - Stop buffer

11 - Shock absorber
^ The same version must be installed on both sides

12 - Coupling link
^ Link between stabilizer bar and suspension strut

13 - Self-locking nut
^ 90 Nm
^ Always replace if removed

14 - Hex bolt, 10 Nm

15 - Bracket
^ For brake hose

16 - Spring clip

17 - Clamp

18 - Hex bolt
^ Always replace if removed

19 - Self-locking nut
^ 60 Nm plus an additional 90° 1/4 turn
^ Always replace if removed

20 - Wheel bearing housing





Removing suspension strut from wheel bearing housing
- Insert special tool - 3424 - as shown and force wheel bearing housing apart.
