TT Coupe (8N3) L4-1.8L Turbo (AWP)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Fuses In Fuse Holder
Fuses In Fuse Holder

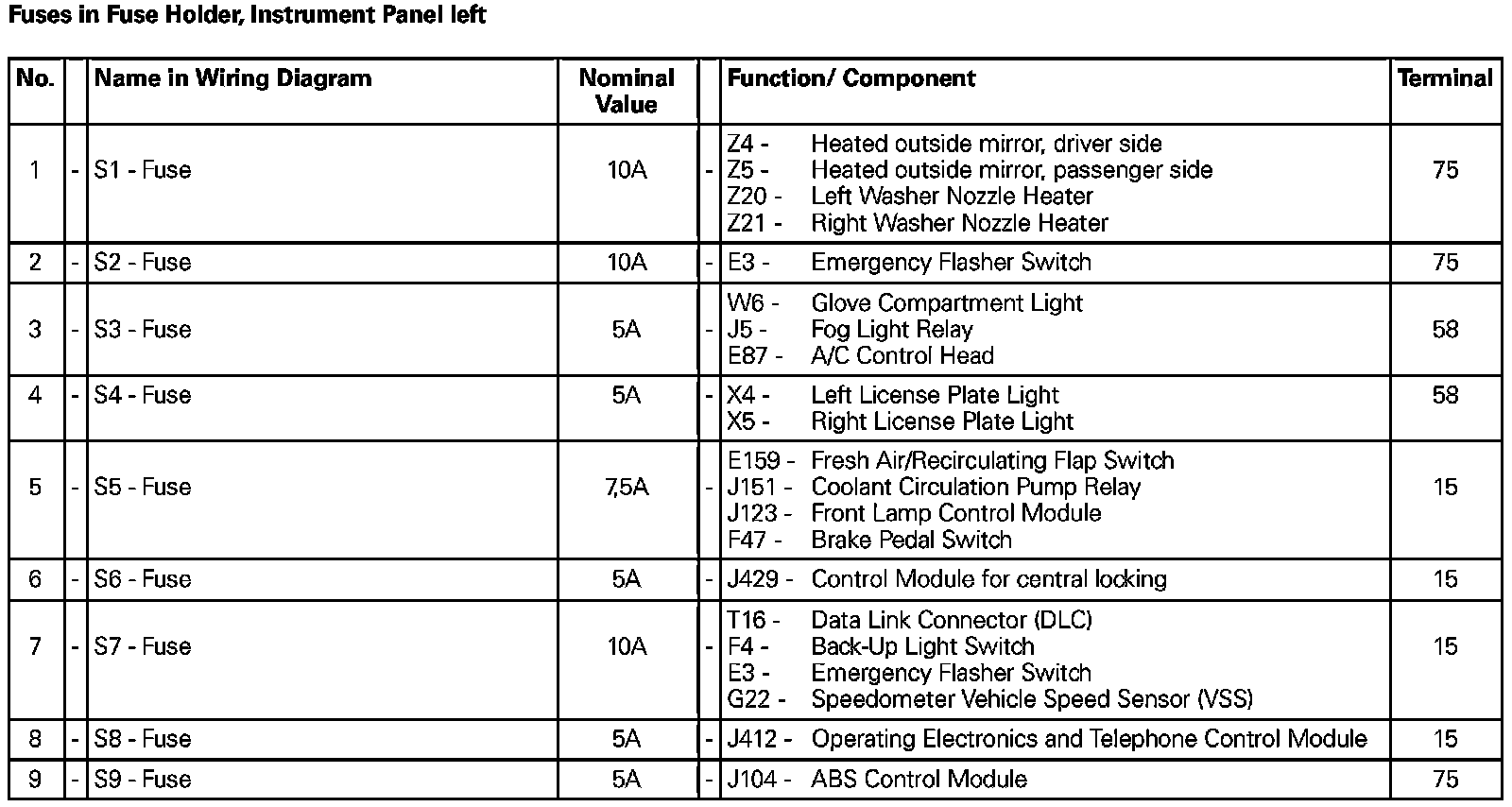

Fuses 1 To 9:

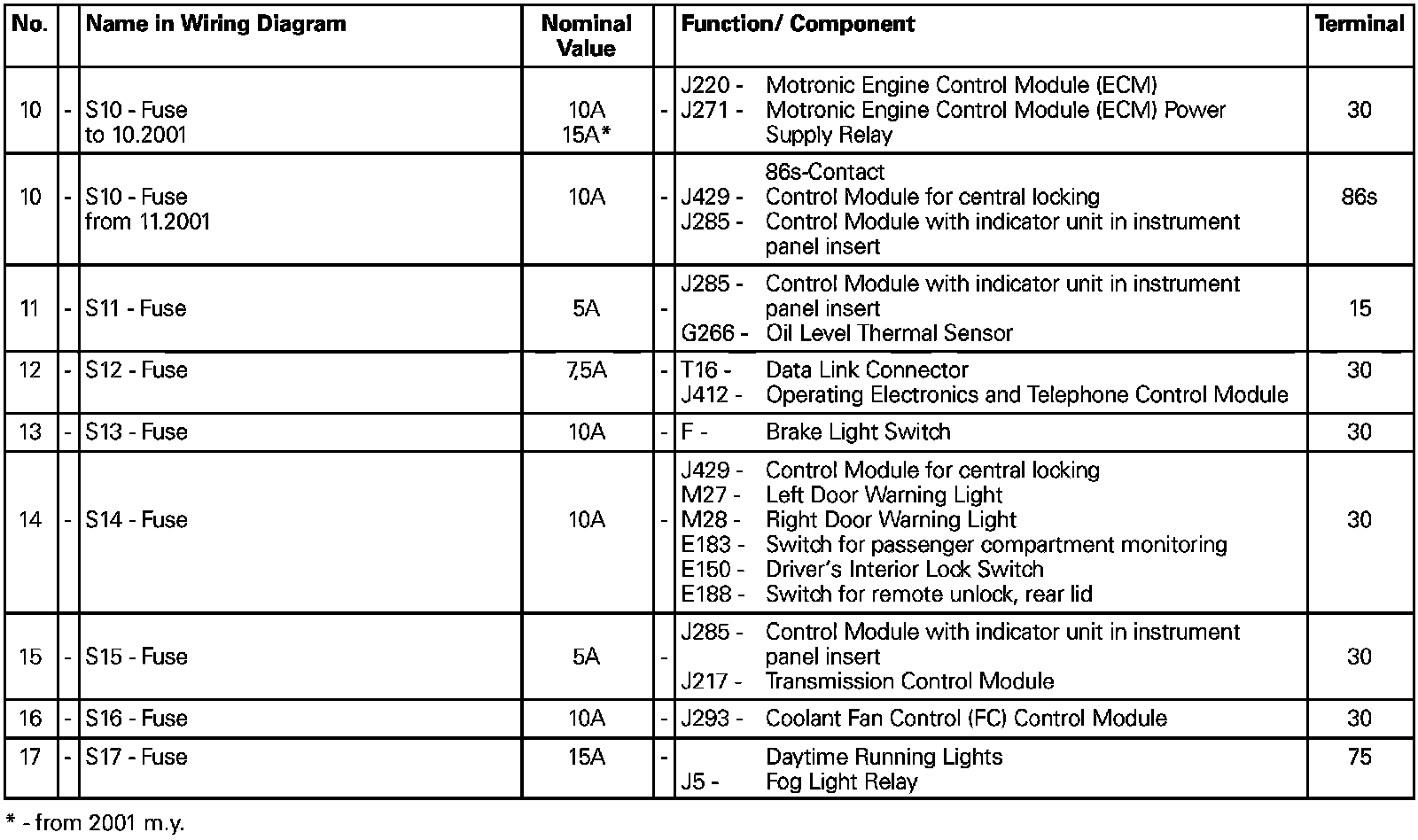

Fuses 10 To 17:

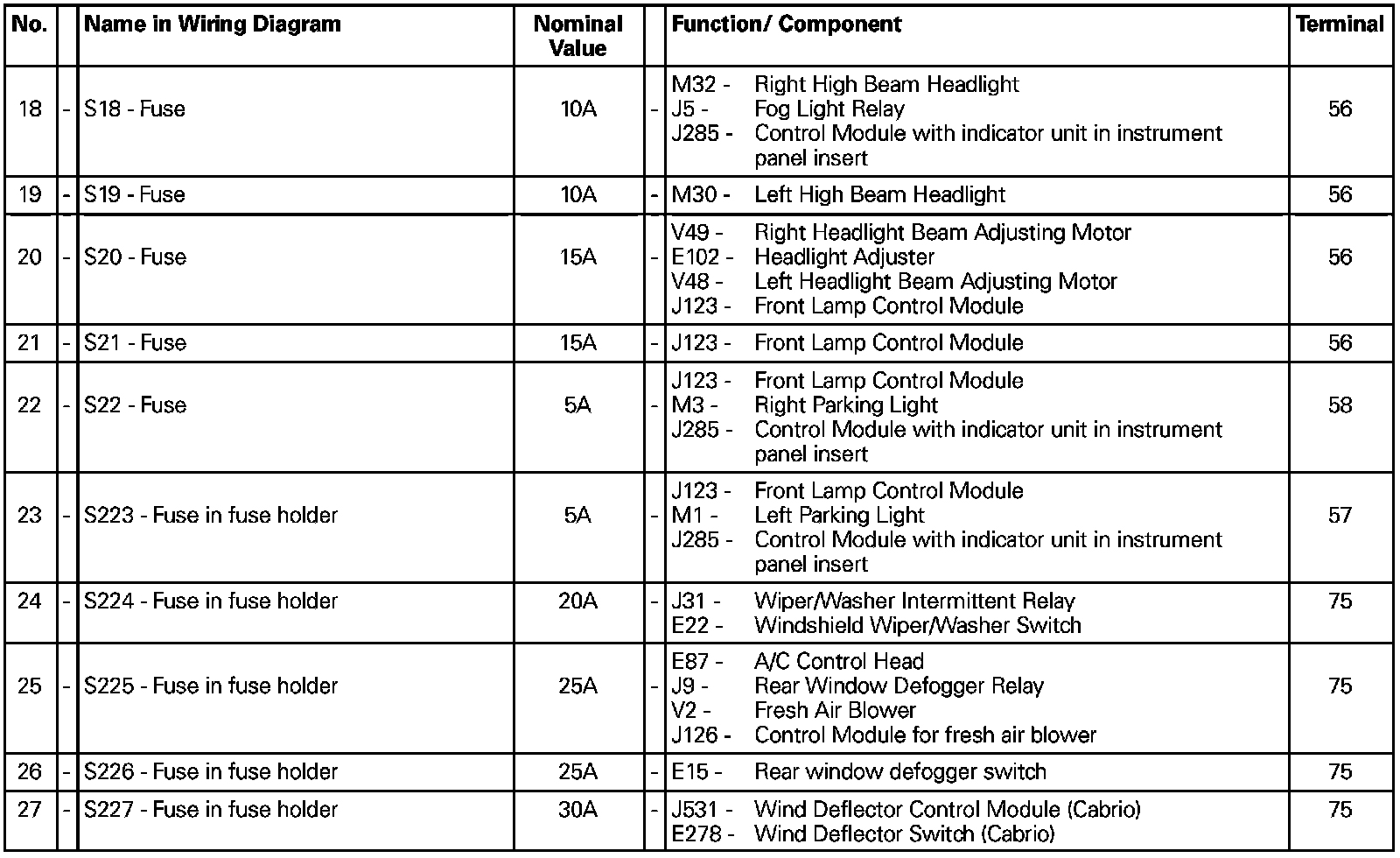

Fuses 18 To 27:

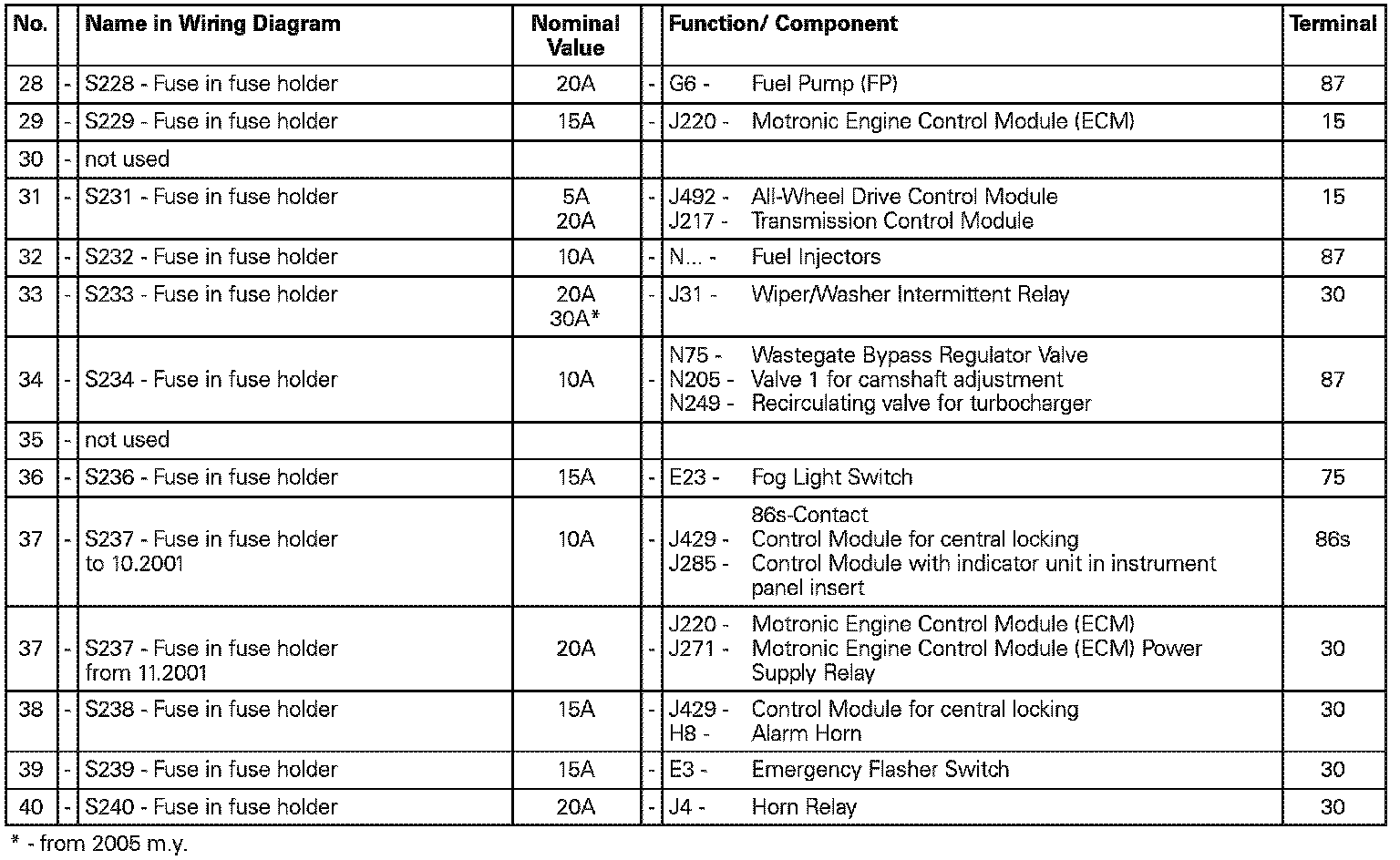

Fuses 28 To 40:

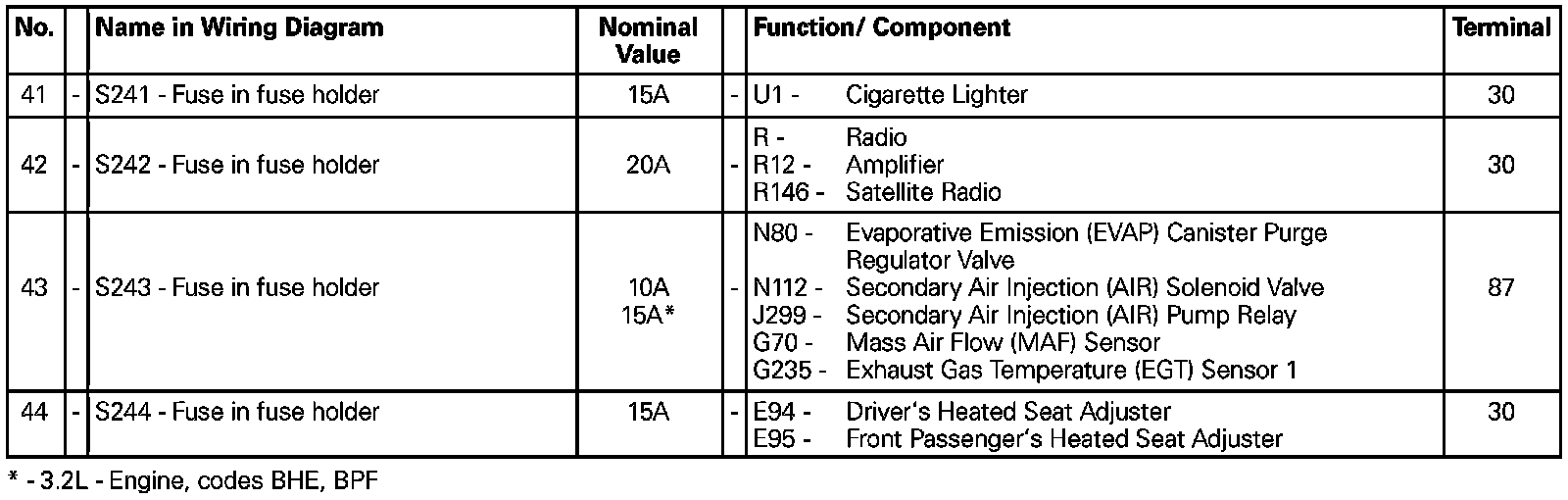

Fuses 41 To 44:
