System Specifications

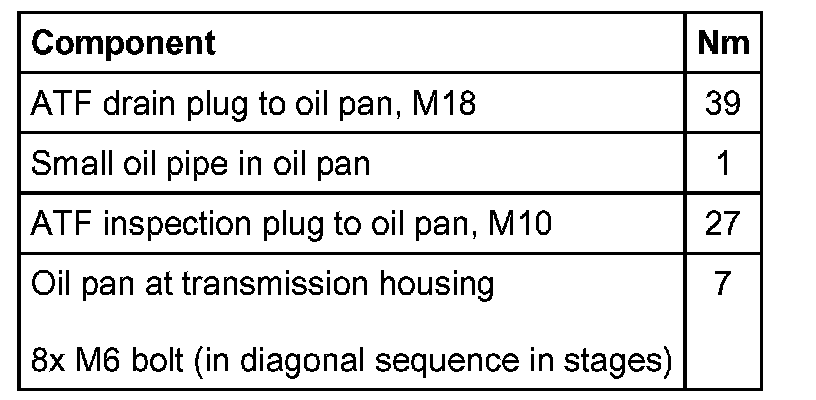

Oil pan, 09G, 6 Speed A/T

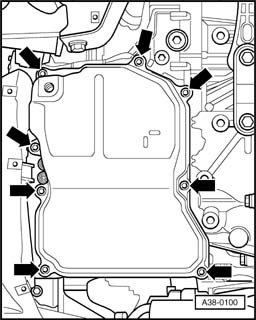

Install 8 bolts of oil pan (arrows) in a diagonal sequence and tighten in stages.
