Front Wheel Drive

Rotor, checking

- Raise vehicle.

- Remove wheel.

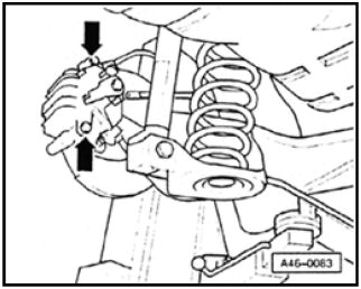

- Unscrew brake caliper housing -arrows- and hang to one side, securing it in position on vehicle with wire.

Note: Do not twist or kink brake hose/line.

- Rotate brake disc and check whether rotor -1- is damaged or dirty.

- If rotor is damaged or in the event of excessive wheel bearing clearance, replace rotor together with wheel hub.

- Install brake caliper housing
