ESP Sensor Unit, Removing and Installing

ESP Sensor Unit, Removing and Installing

Removing

- Remove storage compartment on drivers side.





- Remove bolts (arrows).
- Pull ESP sensor unit -1- in direction of travel and out of holder.
- Unplug electrical connector -2-.

Note:
^ The ESP sensor unit is not resistant to shocks or impact.
^ Do not install an ESP sensor which has dropped to the ground otherwise proper operation is not ensured.

Installing

Install in reverse sequence; note the following points:

- Initiate basic setting for the sensors in the ESP sensor unit.
- Perform ESP road test. General Information

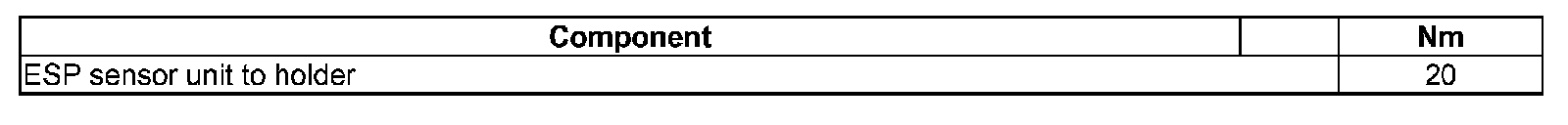

Tightening Specification
