Outer Floor Panel Anchorage Point

Outer Floor Panel Anchorage Point

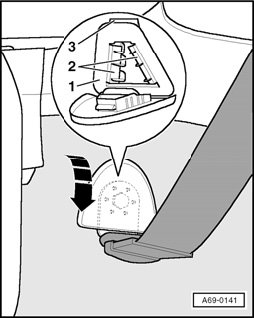

- Open flap of cover - 1 - by pulling in direction of arrow.
- Pull cover - 1 - downward to remove from floor covering.
- When installing, slip tab - 3 - under floor covering.
- By closing flap, press tabs - 2 - under floor covering.

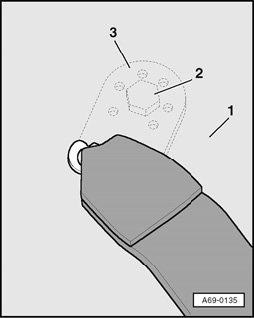

- Remove bolt - 2 -.
- Tightening torque 55 Nm
- Pull plate - 3 - out from under floor covering.
