Belt Guide Fitting Anchorage Point

Belt Guide Fitting Anchorage Point

- Remove outer floor panel anchorage point
- Remove side trim

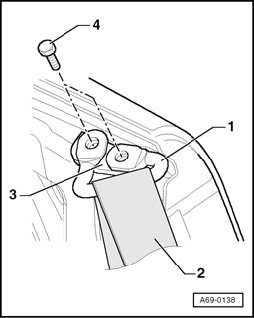

- Remove bolts - 4 - (2x).
- Tightening torque 55 Nm
- Thread belt guide fitting - 1 - out of belt - 2 -.
- When installing, make sure to install washer - 3 -.
