Latch (Lower Anchors and Tethers For Children) Bracket, Removing and Installing



LATCH (Lower Anchors And Tethers For Children) Bracket, Removing And Installing

- Remove rear seat bench
- Remove left or right rear seat backrest

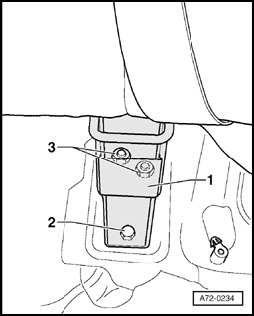

- Remove bolt - 2 -.
- Tightening torque 23 Nm
- Remove nut - 3 - (2x).
- Tightening torque 23 Nm
- Remove LATCH (Lower Anchors and Tethers for Children) bracket - 1 -.
