Measuring Value Blocks, Summary

Measuring Value Blocks, Summary

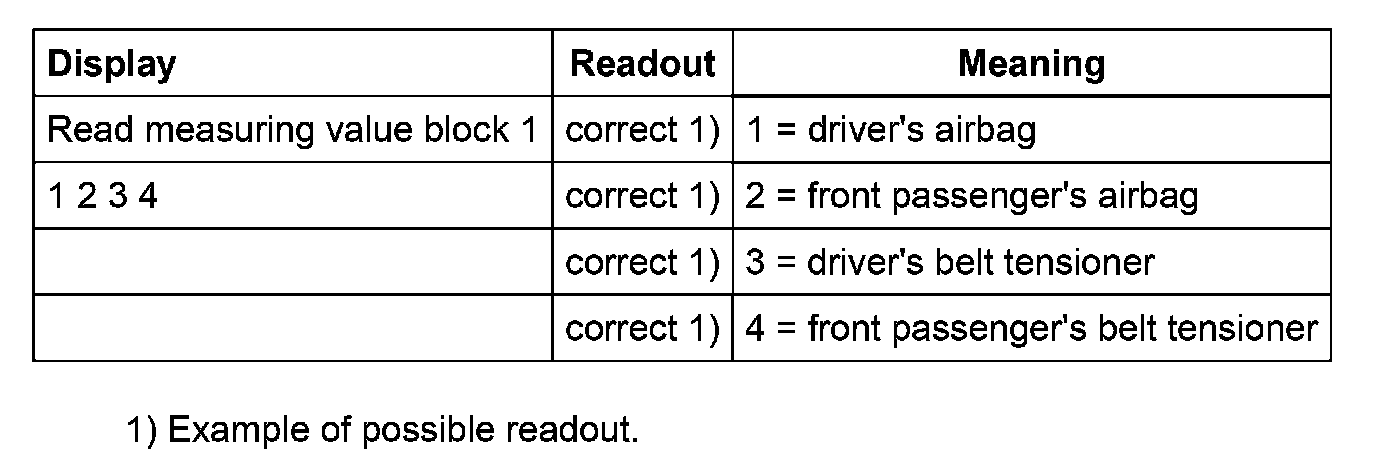

Measuring value block 001







Table of readouts

Correct Resistance OK
Too small Resistance too low
Too large Resistance too high
To Ground Short to Ground (GND)
To positive Short to positive (B+)

- Possible cause of malfunction and repair.

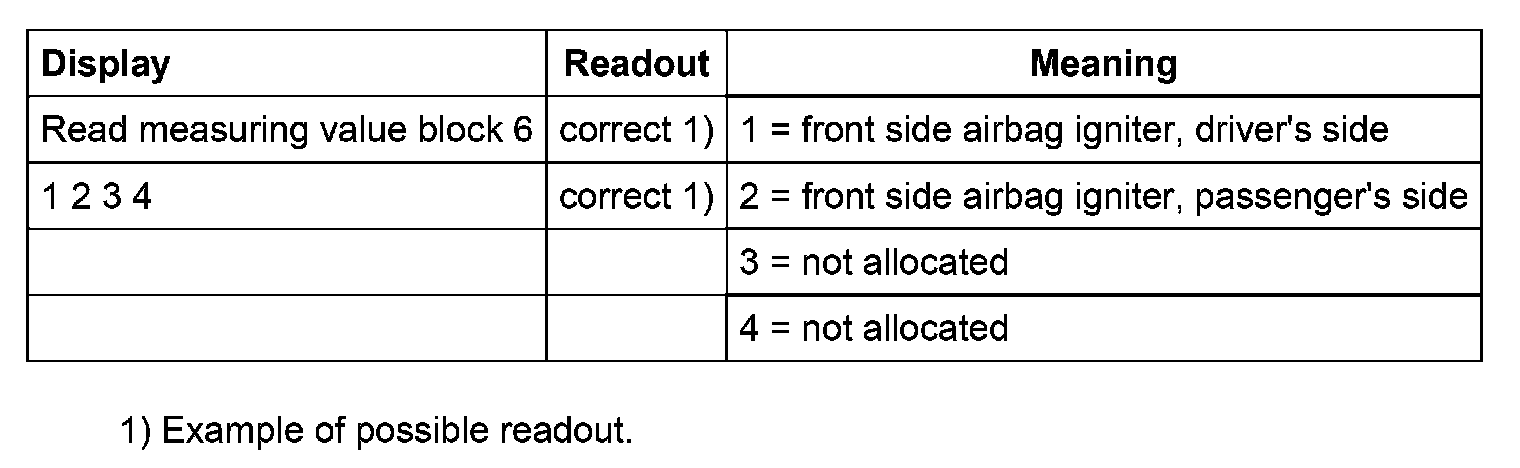

Measuring value block 006







Table of readouts

Correct Resistance OK
Too small Resistance too low
Too large Resistance too high
To Ground Short to Ground (GND)
To positive Short to positive (B+)

- Possible cause of malfunction and repair.
