Leak Detection Pump (LDP) -V144-, Removing and Installing

Leak Detection Pump (LDP) -V144-, Removing And Installing

Removing
- Remove right front wheel.
- Remove cover for vacuum lines.
- Remove right rear wheelhousing liner.

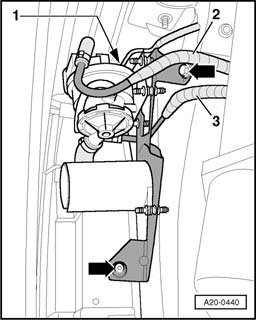

- Disconnect hose connections -2- and -3- (connector coupling at metal sheet, engine side).
- Remove bolts (arrows).
- Remove LDP, disengage harness connector -1- with ignition off and disconnect.

Installing
Installation is the reverse of removal, noting the following:

NOTE: Secure all hose connections using hose clamps appropriate for the model type.

Tightening torque

Components Nm
Bracket for leak detection pump at
wheelhousing 8 Nm
