Recirculating Valve For Turbocharger -N249-, Checking

Recirculating Valve For Turbocharger -N249-, Checking

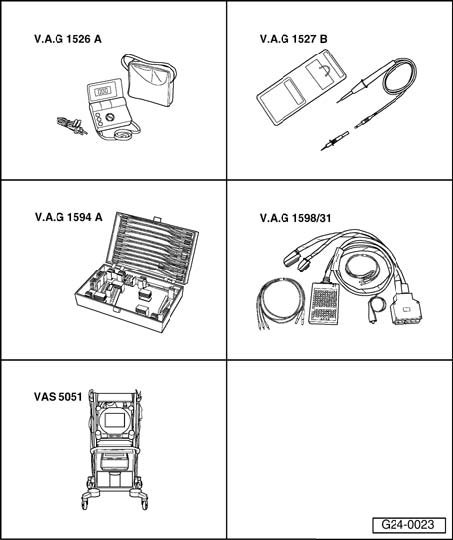

Special tools, testers and other equipment required
- V.A.G 1526 A Multimeter
- V.A.G 1527 B Voltage tester
- V.A.G 1594 A Connector test kit
- V.A.G 1598/31 Test box
- VAS 5051 Vehicle diagnosis, testing and information system with VAS 5051/1 Adapter
or
- V.A.G 1551 Scan Tool with V.A.G 1551/3 A Adapter

NOTE: The Recirculating valve for turbocharger -N249 and its wiring are monitored by the engine control module.

- Connect vehicle diagnostic, testing and information system VAS 5051 (or scan tool V.A.G 1551) and select "Engine Electronics" control module by entering address word 01. Engine must be running at idling speed.
- Check DTC memory of engine control module:

If the display shows a malfunction relating to Recirculating valve for turbocharger -N249-:
- Disconnect hoses from valve but leave electrical connector connected.
- Install an auxiliary hose to one of connections on valve.
- Start output diagnostic test mode and activate Recirculating valve for turbocharger -N249-:

Indicated on display:
Output Diagnostic Test Mode -
Air recirculating valve for turbocharger -N249


Valve should click and open and close (test by blowing into auxiliary hose).

If the valve does not click:
- Check internal resistance of valve.

If the valve does not open and close properly:
- Replace Recirculating valve for turbocharger -N249-.

Checking internal resistance
- Disconnect connector from valve.







- Connect multimeter to valve (resistance measurement range).

Specification: 27 - 30 Ohms

If the specification is not obtained:
- Replace Recirculating valve for turbocharger -N249-.

If the specification is obtained:
- Check voltage supply.

Checking voltage supply

NOTE: The recirculating valve for turbocharger receives its power supply via the fuel pump relay.

Requirement
- Fuse for recirculating valve must be OK

- Disconnect connector from valve.







- Connect voltage tester V.A.G 1527 B as follows:

Connector terminal Measure against
1 Engine ground (GND)

- Operate starter briefly.

LED should light up.

If the LED does not light up:
- Check for open circuit in wiring from terminal 1 to fuel pump relay via fuse

- Repair any open circuits.

If the wiring is OK:
- Check fuel pump relay.

If the LED lights up:
- Check activation.

Checking activation







- Connect voltage tester V.A.G 1527 B to terminal 1 (positive) and terminal 2 of connector.
- Start output diagnostic test mode and activate Recirculating valve for turbocharger -N249-:
LED must flash.

If the LED lamp does not flash or lights up continuously:
- Connect test box V.A.G 1598/31 to wiring harness for engine control module. Do not connect engine control module itself.







- Check for open circuit and short to positive or Ground (GND) in following wiring connection:

Connector terminal Test box V.A.G 1598/31 terminal
2 105

- Repair short circuit or open circuit if necessary.

If the wiring is OK:
- Replace engine control module.
