Halogen Headlights

Turn Signal Bulb, Replacing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

Removing
- Ensure turn signals or emergency flashers are not in operation.

Left headlight:







- Remove cover -arrows-.

Right headlight:

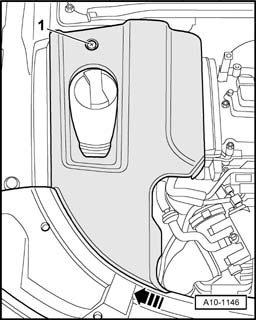

- Remove screw -1- and remove cover over expansion tank -arrow-.

Both sides (continued):







- Turn holder -1- counter-clockwise -arrow- and remove from housing.
- Twist and remove bulb from holder.

Installing
Install in reverse order of removal, noting the following:

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Insert new bulb in holder.
- Insert holder into housing and turn clockwise to secure.
