Trunk Lamp: Service and Repair

Luggage Compartment Lights - Coupe, Removing And Installing

NOTE: Remove luggage compartment lights to replace bulbs (12 V, 5 W)

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

Removing

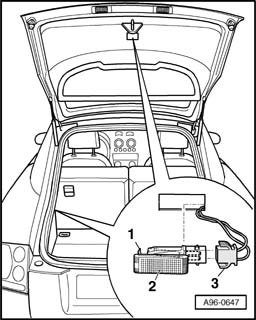

- Use flat screwdriver to depress retainer -1- and pry out luggage compartment light -2-.
- Disconnect electrical connection-3-.
- Remove bulb from holder.

Installing
Install in reverse order of removal, noting the following:
- Insert luggage compartment light in opening and engage on opposite side.
