Hazard Warning Switch: Service and Repair

Switches in instrument panel, removing and installing

CAUTION!
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

Removing
- Remove radio

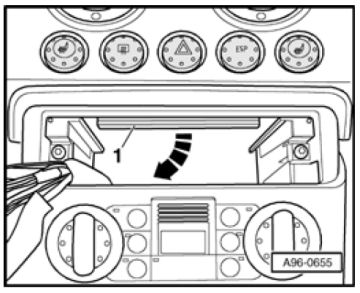

- Pull down cover plate -1- in top of radio slot opening -arrow- and remove from opening.

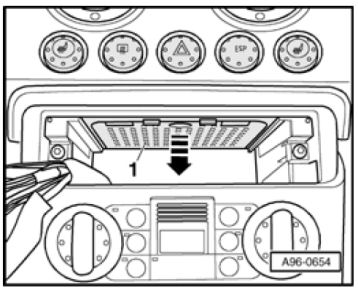

- Reach upwards through radio slot and release switches by pulling retainer clip -1- downwards -arrow-.
- Press switch to front out of instrument panel.
- Take switch out of instrument panel through radio slot.
- Disconnect electrical connection.

Installing

Install in reverse order of removal of removal, noting the following:
- Press clip upwards until it engages.
- Reconnect electrical connection.
- Insert cover plate in top of radio slot.
Note: Cover plate can only be fitted in one position.
