Halogen High Beam Bulb, Replacing

Halogen High Beam Bulb, Replacing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

Removing
- Ensure light switch is in -O- position.

Left headlight:







- Remove cover -arrows-.

Right headlight:

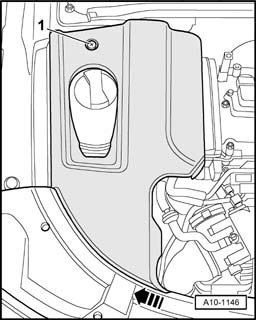

- Remove screw -1- and remove cover over expansion tank -arrow-.

Both sides (continued):
- Remove housing cover from headlight.







- Disengage spring clip -2- and remove bulb holder -1- from housing.







- Remove bulb -1- from holder.

NOTE: Do not disturb parking light bulb -2-.

Installing
Install in reverse order of removal, noting the following:

CAUTION: Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

- Insert new bulb in holder.
- Secure bulb holder with spring clip.
- Close housing cover.
