Glove Box Lamp: Service and Repair

Glove Compartment Light, Removing And Installing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

NOTE: Remove luggage glove compartment light to replace bulb (12 V, 5 W)

Removing
- Ensure light switch is in -O- position.

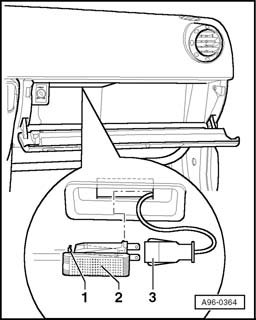

- Use flat screwdriver to depress retainer -1- and pry out glove box light -2-.
- Disconnect electrical connection.-3-.







- Remove cover -arrow-.
- Remove bulb from holder.

Installing
Install in reverse order of removal, noting the following:
- Insert glove box light in opening and engage on opposite side.
