Footwell/Defroster Flap Motor -V85-, Removing and Installing

Footwell/Defroster Flap Motor -V85-, Removing And Installing

- Remove driver's storage compartment.

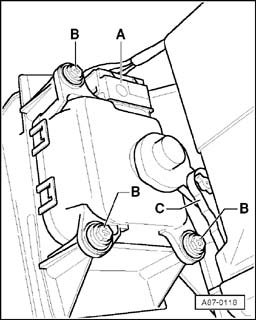

- Disconnect electrical connection -A-.
- Remove screws -B- (3x).
- Disengage actuating arm -C- and remove motor.

Notes on installation:
- After installing, always carry out On Board Diagnostic (OBD) on Climate control.
- When installing motor, make sure actuating arm -C- is properly aligned and installed.
- Route electrical wiring harness so that it cannot come into contact with any moving parts like the actuating arm on the motor or other.
