Engine, Removing and Installing

Engine, removing and installing





Special tools, testers and repair equipment required

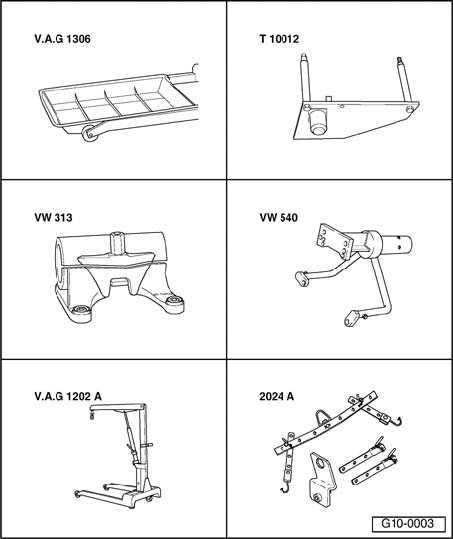

^ V.A.G 1306 Drip tray
^ T10012 Engine bracket
^ VW 313 Support clamp
^ VW 540 Engine and transmission support
^ 3180 Retainer
^ V.A.G 1202 A Workshop crane
^ 2024 A Lifting tackle

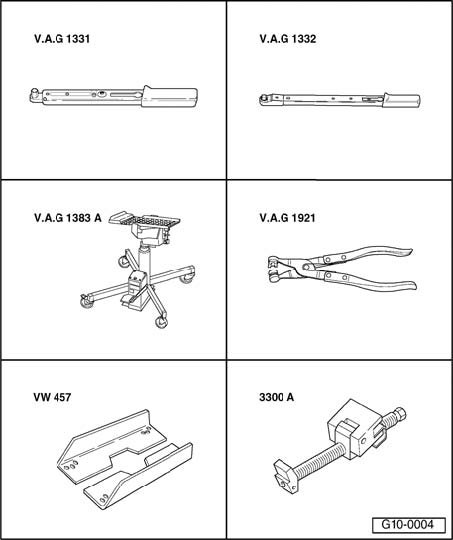

^ V.A.G 1331 Torque wrench (5 - 50 Nm)
^ V.A.G 1332 Torque wrench (40 - 200 Nm)
^ V.A.G 1383 A Engine/transmission jack
^ V.A.G 1921 Spring-type clip pliers
^ VW 457 Support rails
^ 3300 A Engine support device

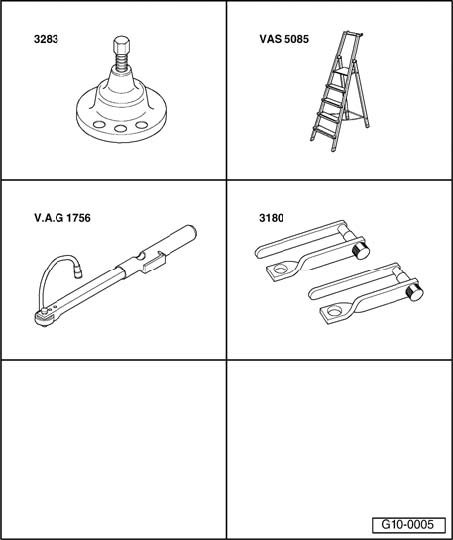

^ 3283 Pressing-out appliance
^ VAS 5085 Step ladder
^ V.A.G 1756 Angle wrench
^ G 000 100 grease (vehicles with manual transmission)
^ Bolt M10 X 25/8.8
^ Bolt M8 X 25/8.8
