Oil Pump, Removing and Installing

Oil pump, removing and installing

Removing

- Remove oil pan.





- Loosen bolts (arrows).
- Remove oil pump but leave chain sprocket in place.

Installing

- Insert dowel sleeves at top of oil pump.

Chain sprocket can only be installed in one position on oil pump shaft.

- Install oil pan.

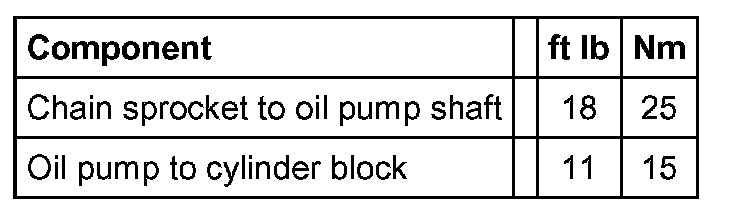

Tightening torques
