Rear Axle Components

ABS Wheel Speed Sensor, Removing and Installing

Removing





- Release connector -1- on wheel speed sensor and disconnect wiring.
- Remove bolt -2-.
- Pull speed sensor out of stub shaft.

Installing

Install in reverse sequence; note the following points:

- Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with solid lubricant paste G 000 650.

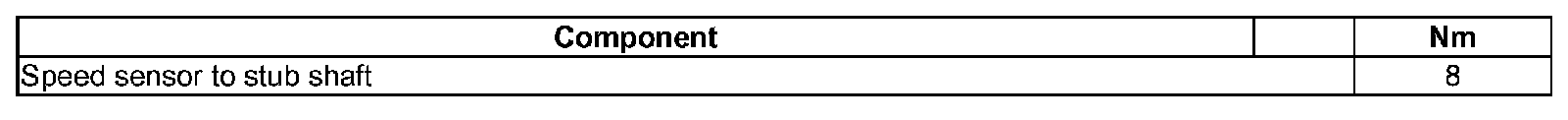

Tightening Specification
