Parking Brake Lever: Description and Operation

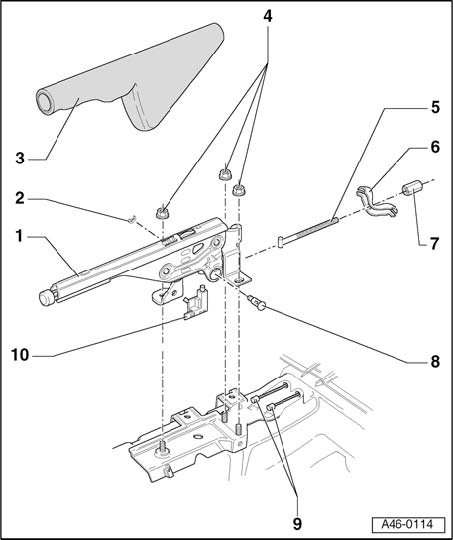

Parking Brake Lever, Assembly Overview





1 - Parking brake lever

^ The parking brake lever is supplied as spare part assembled with pull rod, locking pawl, push rod, push button, compression spring and ratchet

2 - Lock washer

3 - Parking brake lever trim

^ Pull off forward

4 - Nut - 18 Nm

5 - Pull rod

6 - Compensator

7 - Nut - 8 Nm

^ Self-locking
^ To adjust parking brake

8 - Pivot pin

^ For parking brake lever

9 - Parking brake cable

10 - Switch

^ For parking brake warning lamp
