Rear

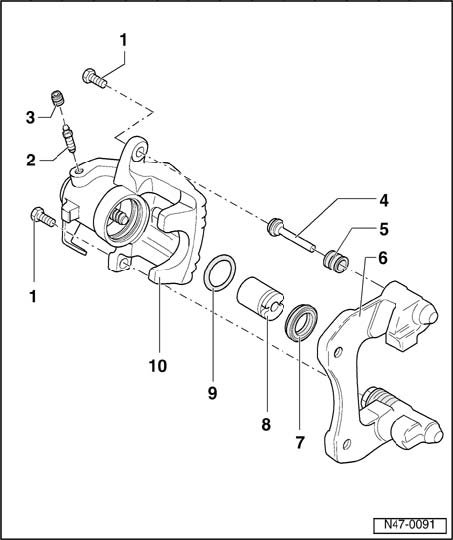

Rear Brake Caliper, Assembly Overview





1 - Bolt - 35 Nm

^ Self-locking
^ Replace each time after removing
^ When loosening and tightening counter-hold on guide pin

2 - Bleeder screw - 10 Nm

^ Apply thin coat of assembly paste G 052 150 A2 to threads before screwing in

3 - Protective seal

4 - Guide pins

^ Grease before pulling on protective cap

5 - Protective cap

^ Pull onto brake carrier and guide pin

6 - Brake carrier with guide pin and protective cap

^ Supplied as replacement part, assembled with sufficient grease on guide pins
^ If protective caps or guide pins are damaged, install repair kit. Use grease packet supplied to lubricate the guide pins.

7 - Protective cap

^ Pull outer sealing lip onto piston

8 - Piston with automatic adjustment

^ Apply thin coat of assembly paste G 052 150 A2 to piston

9 - Seal

^ Do not damage when inserting piston

10 - Brake caliper housing with parking brake cable lever

^ If a leak exists at the parking brake cable lever replace brake caliper housing
